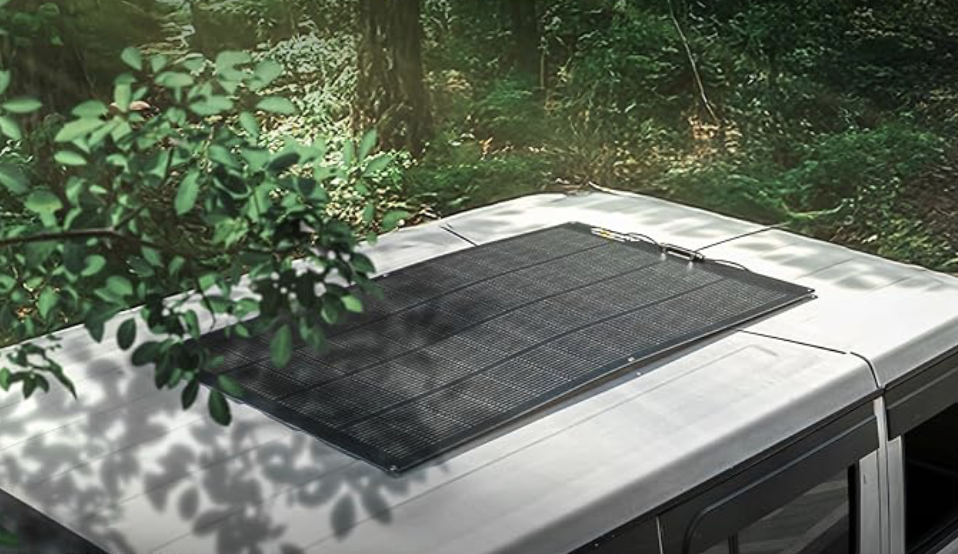

【Car-mounted】Install on your car's roof! Generate power while driving with a flexible solar panel

Presenting two types of solar panels boasting top-class industry conversion efficiency of 25%. What's amazing is the rare flexible design. It can be bent 270°, so it can be installed on the car's roof!

Even with 11% shade, it marks an output of 178W.

The "Arch Pro Solar Panel Series" from BougeRV is available in two models: 100W and 200W. The 200W model features the world's first (according to the brand BougeRV) monocrystalline flexible solar panel equipped with a bypass diode.

This bypass diode is equipped with 27 units for 100W and 28 units for 200W, enabling a high power generation rate even in shaded conditions. According to a demonstration conducted by BougeRV using the 200W model, while other products outputted 15W in 11% shade, it recorded an output of 178W. Furthermore, in 33% shade, while other products had an output of 10W, it achieved an output of 134W, clearly demonstrating its overwhelming performance in these results.

The role of the bypass diode also includes preventing the hot spot phenomenon, where a part of the panel becomes overheated. By preventing damage due to heat, it enhances safety and extends the lifespan.

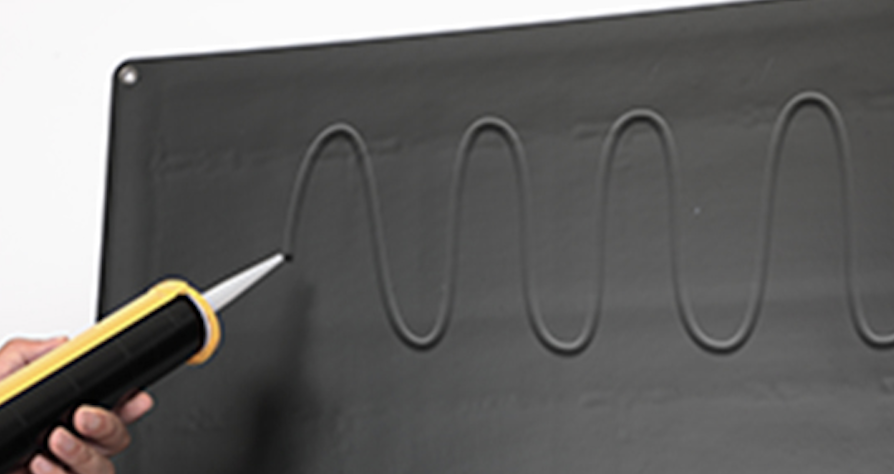

Compatible with strong adhesion for tape and similar materials.

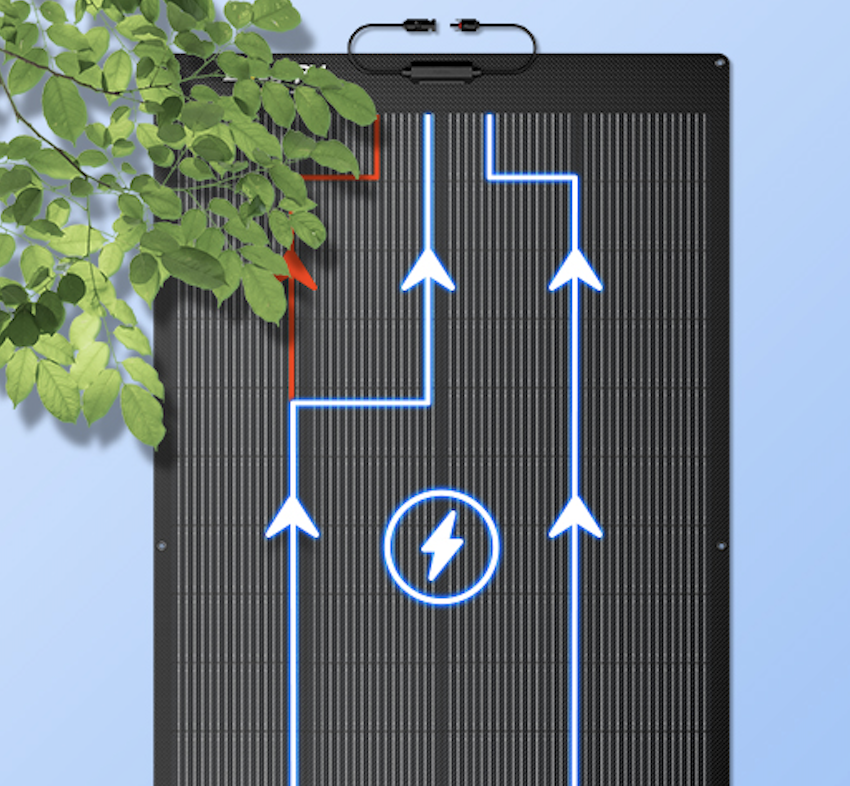

The stable power supply is achieved not only by the bypass diode but also by the increase of busbars (electrodes that conduct electricity) from 9 in the old model to 16, which is a significant reason. By dispersing resistance, power generation loss has been reduced by -2.5%, and output has increased by +4%.

The weight of the solar panels is light, with 100W weighing 2.1kg and 200W weighing 3.6kg, and they are also only 2.5mm thick, making them very easy to carry.

Although it's thin enough to make you worry about it being blown away, rest assured. It supports powerful fixation methods such as adhesive tape, silicone adhesive, and installation holes, allowing for use even on windy days. Furthermore, the main body has an IP68 compliant waterproof and dustproof performance, with a snow load capacity of 5000Pa. It has tough specs suitable for use in all weather conditions.

Product Name: Arch Pro Solar Panel Series
Price: 100W: 17,980 yen, 200W: 39,980 yen
Conversion Rate: 25%
Curvature Angle: 270°
Size: 100W: 974×612×2.5mm, 200W: 1,345x785×2.5mm
Weight: 100W: About 2.1kg, 200W: About 3.6kg
Rated Voltage: 100W: 32.4V, 200W: 31.1V
Rated Current: 100W: 3.1A, 200W: 6.4A
Solar Cell: N-type TOPCon 25% efficiency
Bypass Diode: One for every two half-cut cells
Output Port: MC4 connector
