【Car Accessories】Also plays high-res audio! 2-way speakers compatible with a wide range of Toyota vehicles

I want to enjoy driving with more immersive sound──what I discovered was a 2-way speaker specifically designed for Toyota vehicles. Because it's specially designed, it achieves powerful high-quality sound without any wiring modifications. Driving is sure to become more enjoyable!

Immerse yourself in a sound that feels real

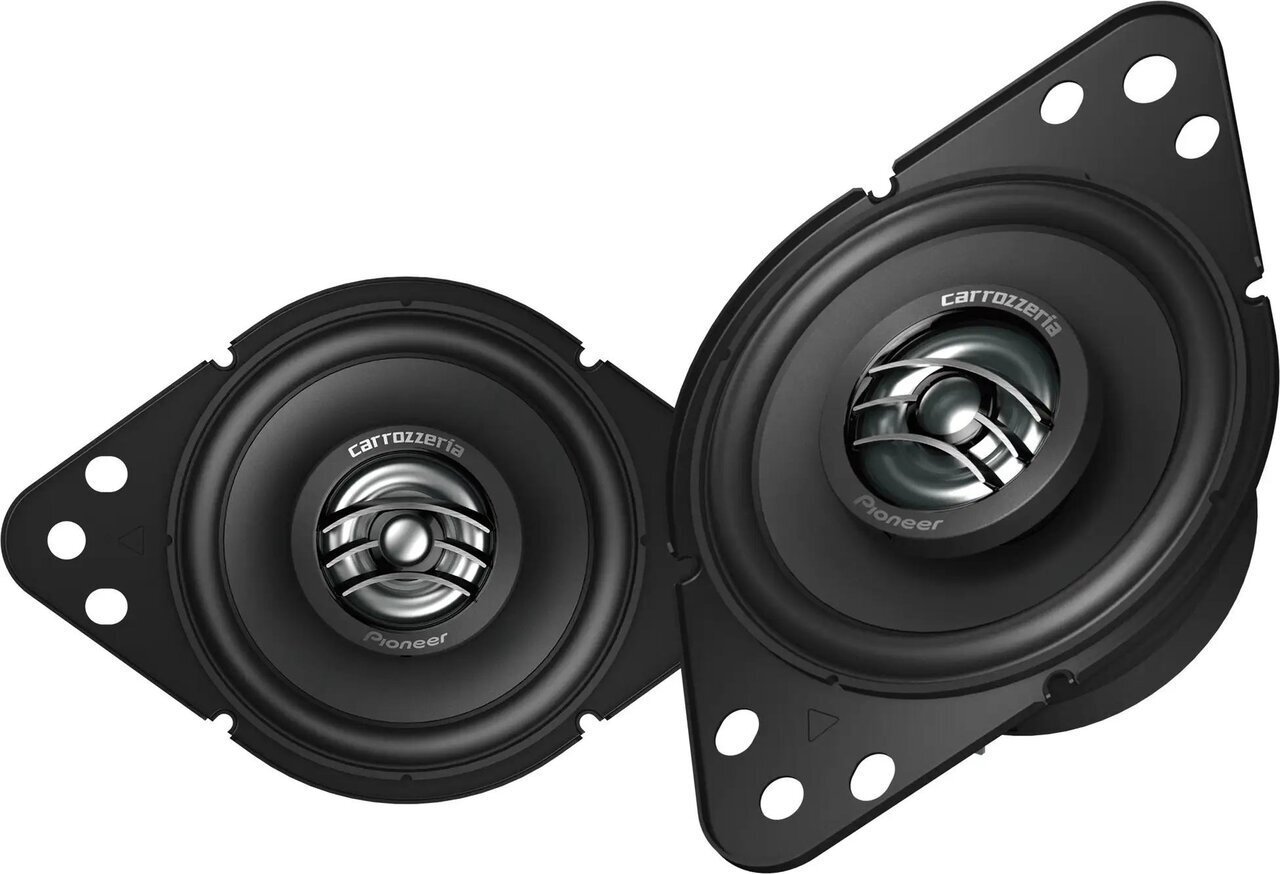

Pioneer has released the Carrozzeria 2-way speaker "TS-H100-TY," specifically for Toyota vehicles, which allows for easy sound quality enhancement. It comes with conversion connectors and a network, making it possible to install it in the factory dashboard speaker location without any special wiring modifications. You can easily upgrade the sound quality to enjoy a real and powerful sound.

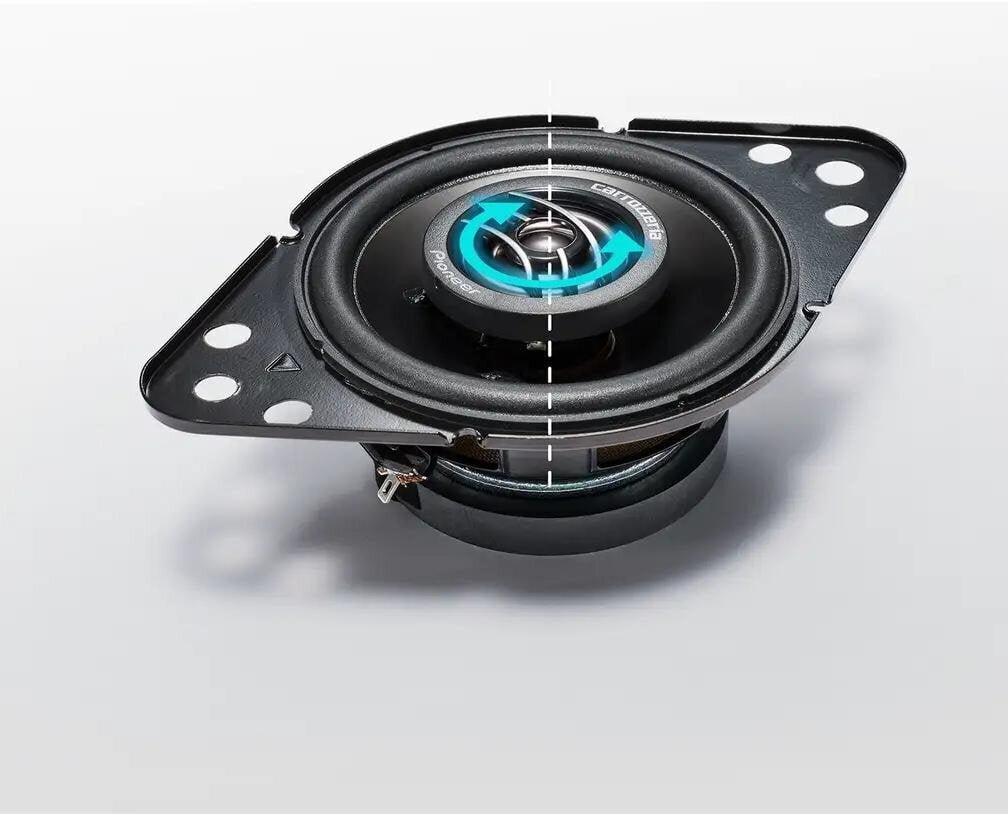

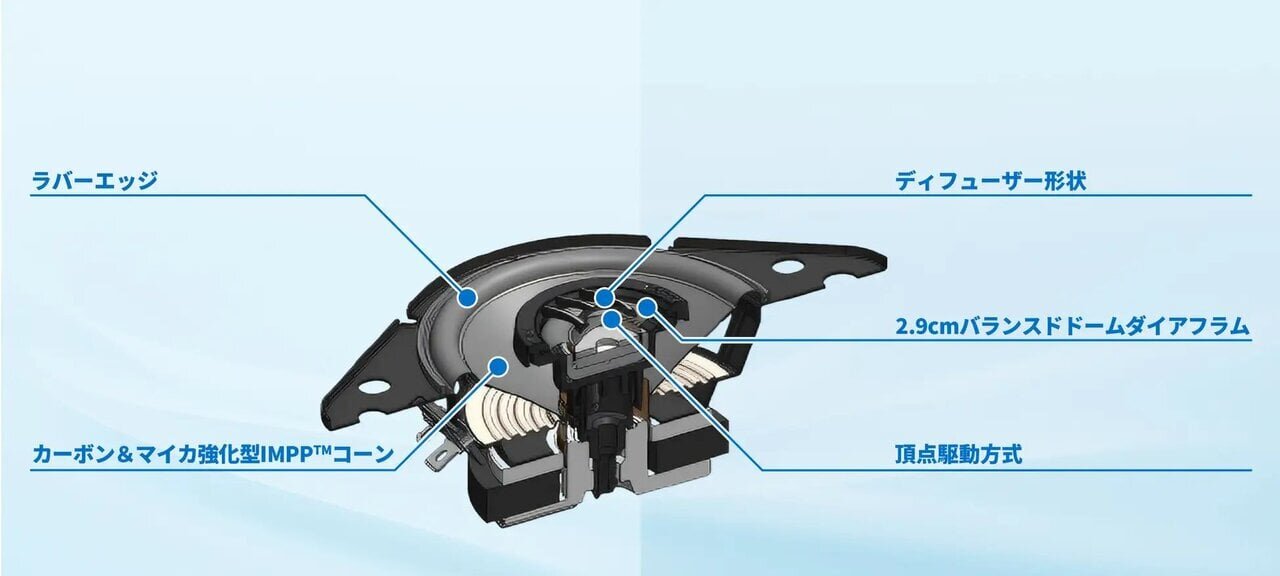

With a "rotary mechanism" that reproduces clear mid and high frequencies, you can adjust the angle and direction of the sound. You can enjoy pleasant sound whether you're in the driver's seat or the passenger seat. The diffuser shape at the edge of the speaker accurately delivers even the subtle sounds, achieving a natural sound spread. The tweeter section utilizes a "2.9cm balanced dome diaphragm" that can reproduce frequencies up to 55kHz and employs a "peak drive method" to minimize unwanted vibrations, delivering high sound quality.

The mid-range features a mix of "carbon & mica reinforced IMPP cone" and "rubber edge," producing a stable sound with minimal distortion.

Easy-to-install dedicated design

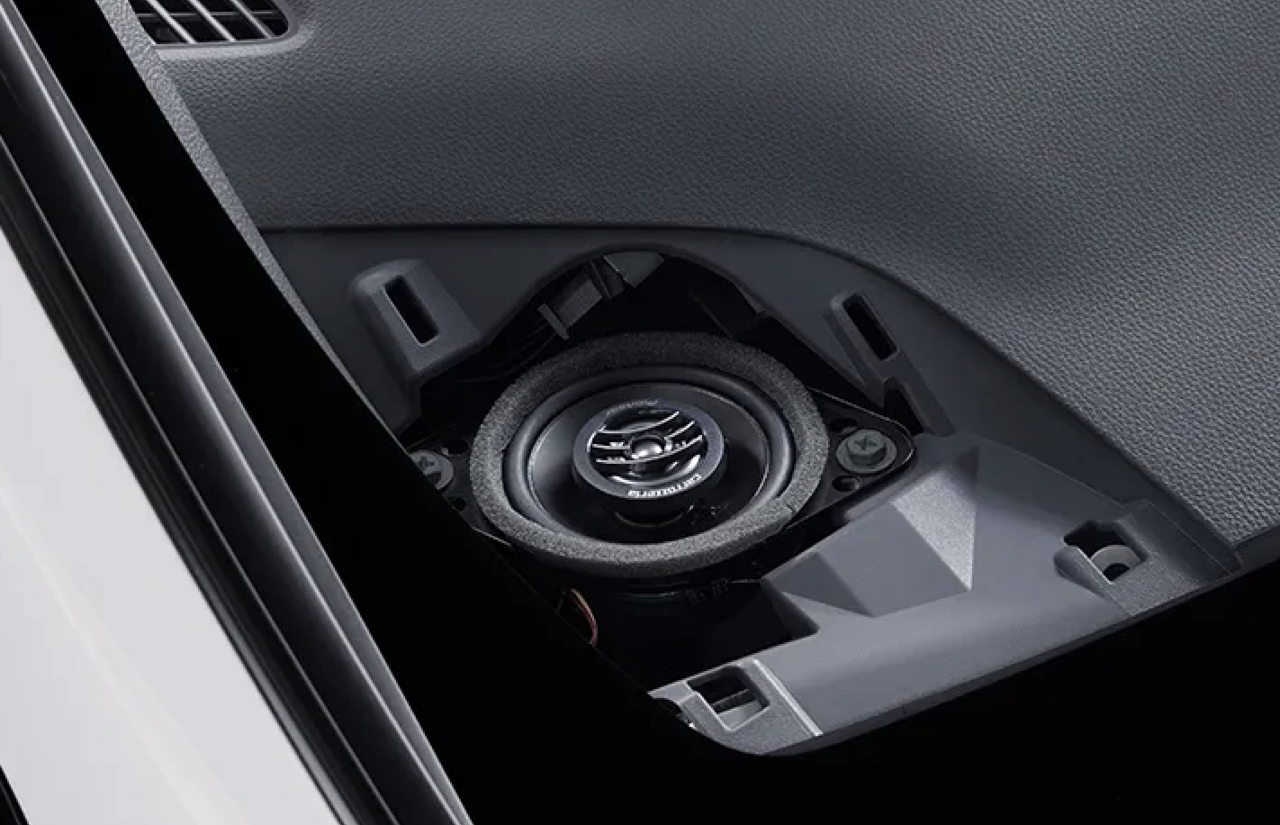

Since it uses the same connection terminals as Toyota's genuine speakers, there is no need to cut or solder the wiring. The conversion connectors and network are included, allowing for a smooth installation in the factory dashboard speaker location.

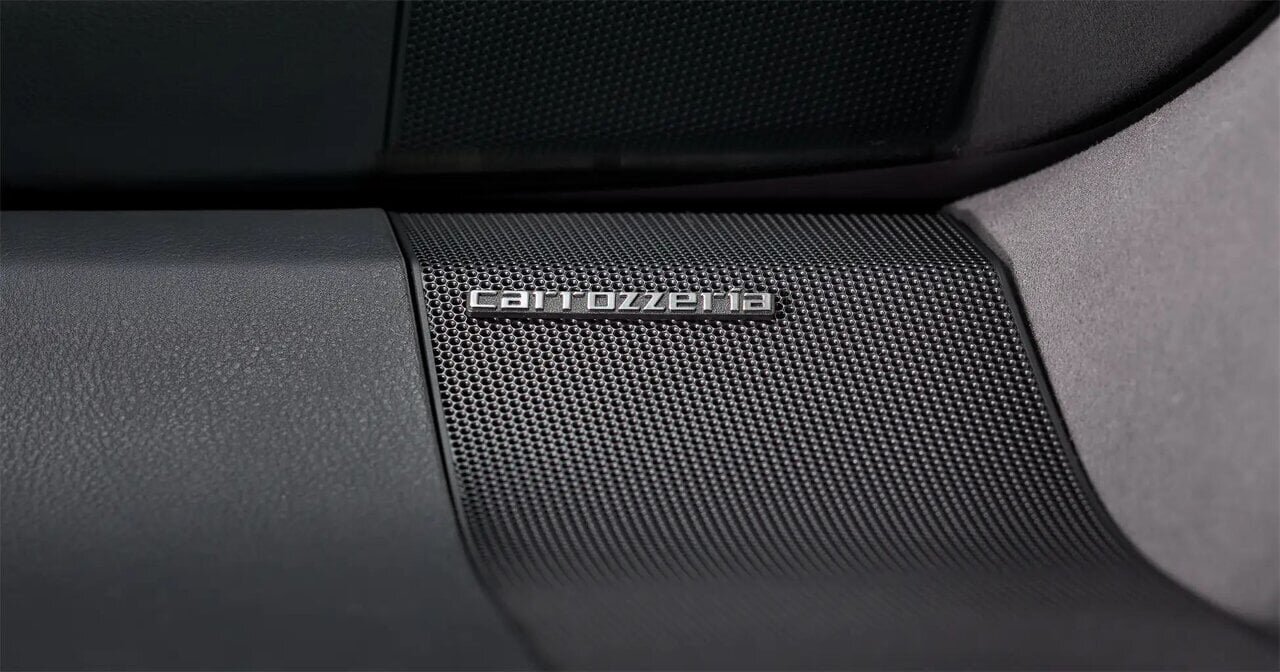

Carrozzeria Badge Included

After installing the speakers and attaching the front cover (speaker grill) with the "Carrozzeria" brand logo badge, this stylishness is achieved. Not only does it enhance sound quality, but it also makes the appearance sleek. It seems like the mood for drive time will be greatly lifted.

Product Name / 9cm 2-Way Speaker
Model Number / TS-H100-TY
Price / Open (Estimated retail: 25,000 yen)
Speaker Configuration / 9cm IMPP Cone Midrange, 2.9 cm Balanced Dome Tweeter
Maximum Input / 100W
Rated Input / 20W
Frequency Response Range / 100 Hz - 55,000 Hz (when using network)
Sensitivity / 83dB
Impedance / When connected to vehicles with genuine 8Ω speakers: 8Ω, when connected to vehicles with genuine 4Ω speakers: 4Ω
Playback Method / Coaxial 2-Way
HPF (High Pass) / 530Hz -12dB/Oct. (for vehicles with genuine 8Ω speakers), 340Hz -12dB/Oct (for vehicles with genuine 4Ω speakers)
Weight (including accessories, per unit) / 0.37kg
