【Car Security】Detects human movement while parked! A sensor switch to add “+α” to your dashcam

To alleviate concerns about car break-ins or hit-and-runs, we recommend introducing a Doppler sensor that can expand the monitoring functionality of your dashcam. It automatically starts recording when a person approaches or moves around the vehicle, keeping an eye on your beloved car's surroundings. Want to enhance your peace of mind with “+α”!

Using existing dash cams to enhance surveillance

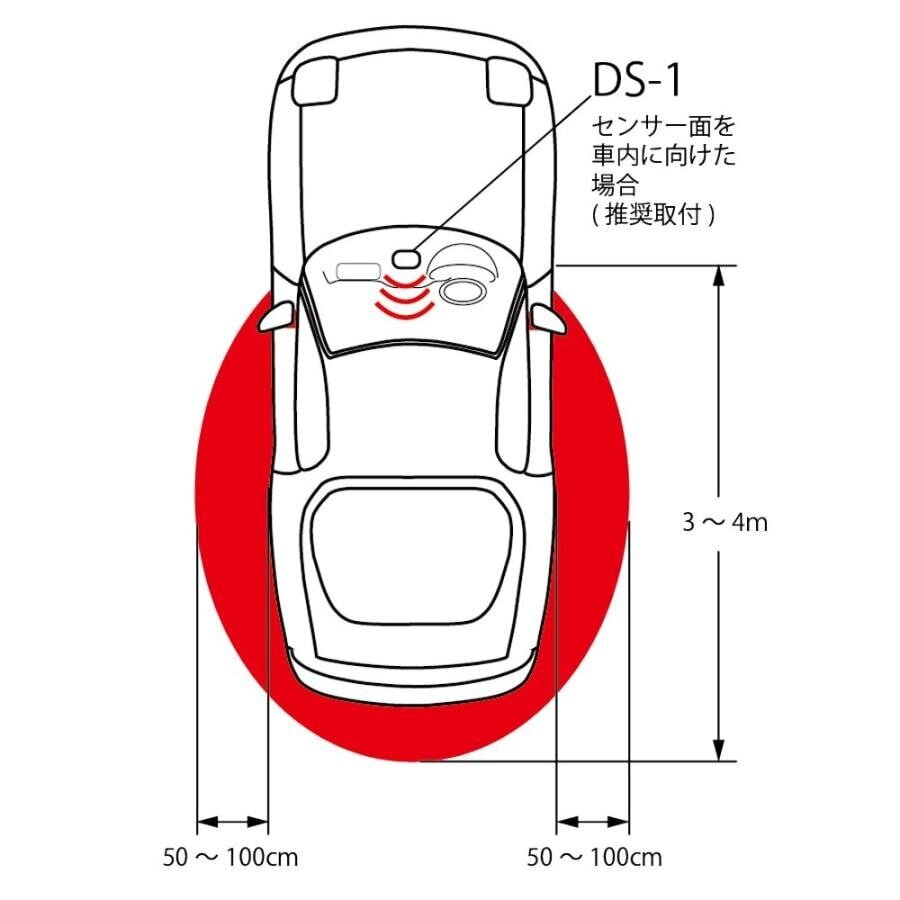

It comes with a built-in Doppler sensor that uses radio waves, which can detect movements, for example, when a suspicious person comes close to the car or attempts to enter the vehicle, activating the connected dash cam, known as the "Doppler Sensor (DS-1: 5V)."

In simple terms, it's a sensor switch that can be used as a surveillance camera while parked. The biggest feature is that it can enhance the surveillance function by utilizing existing dash cams and can connect with up to two dash cams. Depending on the application, it can be used for inside or outside of the vehicle shooting.

Easy setup enables parking surveillance

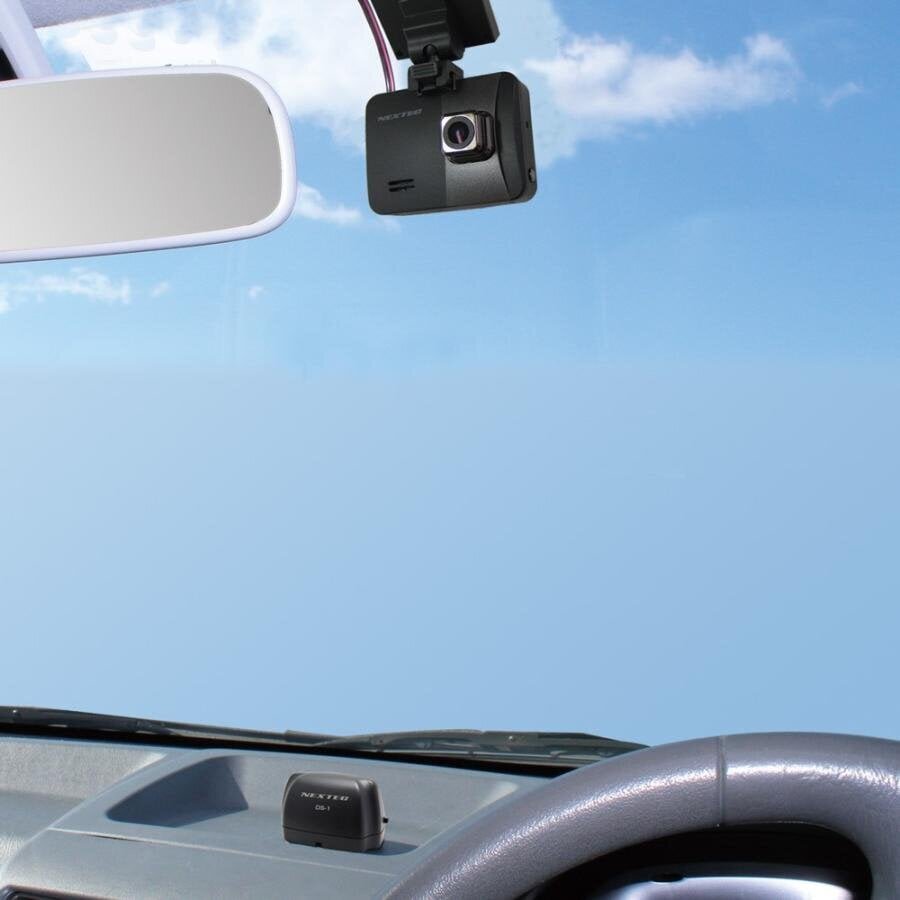

Another noteworthy point is the benefit of being able to use a dash cam that is useful only during driving in "Parking Surveillance Mode." It allows for increased security while parked without the need for additional cameras, and the wiring is relatively simple. By connecting to a constant power source and simply sticking the sensor unit to the dashboard or the inside of the windshield, you can set up a parking surveillance system.

Friendly to your car for peace of mind.

It is possible to switch between three sensitivity levels, preventing false detections caused by movements that are not human, such as shaking trees or heavy rain. By reducing unnecessary recording, it lightens the burden on the vehicle's battery, allowing for safe use even during long-term parking monitoring. Why not consider equipping it to protect your beloved car?

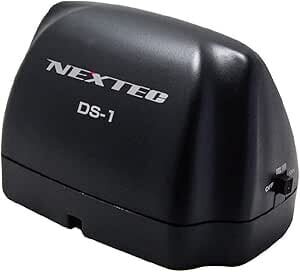

Product Name / DS-1 (5V)
Price / Open (Actual Selling Price: 15,236 yen)
Power Supply Voltage / DC12V
Current Consumption / 7mA (steady state) 40mA (during security operation)
Grounding Method / Negative Grounding Method
Protection Circuit / DC12V input: 1.5A (automatic recovery type) DC12V output (2 systems): each 1A (automatic recovery type)
Sensor Sensitivity Setting Switch / Switchable between 3 levels: L (low sensitivity) / M (medium sensitivity) / H (high sensitivity)
External Dimensions / Approximately 63(W) x 41(H) x 52(D) mm (excluding protrusions)
Weight / Approximately 46g (excluding mounting bracket)
