Great news for Toyota car owners! Expand your entertainment with a rear monitor and GVIF conversion interface

If you want to enrich your entertainment space in a Toyota car, we recommend KEIYO's rear monitor and GVIF signal converter. The rear monitor can be mounted on the headrest. There are limited options for genuine products, and pricing can be a concern, but this could be a new alternative.

Minimize noise and video distortion while driving.

Toyota vehicles' genuine navigation and display audio do not have HDMI output, so if you want to connect to a rear monitor, you need to use a dedicated signal called GVIF. As a result, there are situations where you have no choice but to opt for dealer options, and the only available type is the flip-down type that hangs from the ceiling, which is problematic for those who want to install a monitor on the headrest.

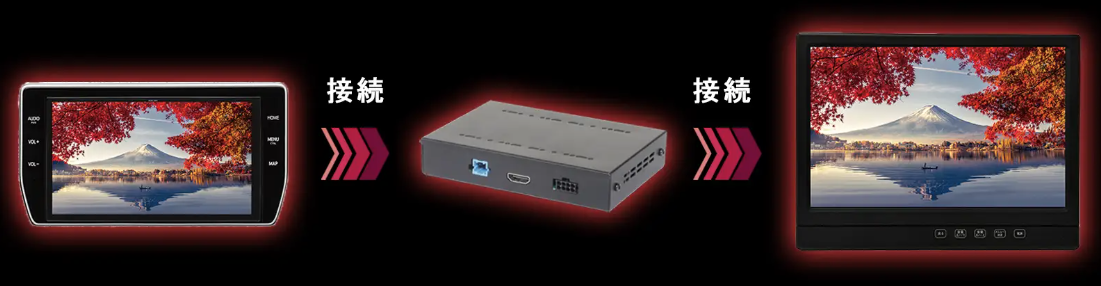

The "AN-S142" GVIF conversion interface is designed to solve such problems. It can be used with rear monitors from domestic manufacturers and supports monitor resolutions of 480, 720, 1080P, and 1080i. Furthermore, it does not require complicated settings or additional adapters, allowing for output while minimizing noise and disturbances in the video during driving.

Rear monitor with extendable arm for easy viewing from anywhere in the back seat.

Source: KEIYO.

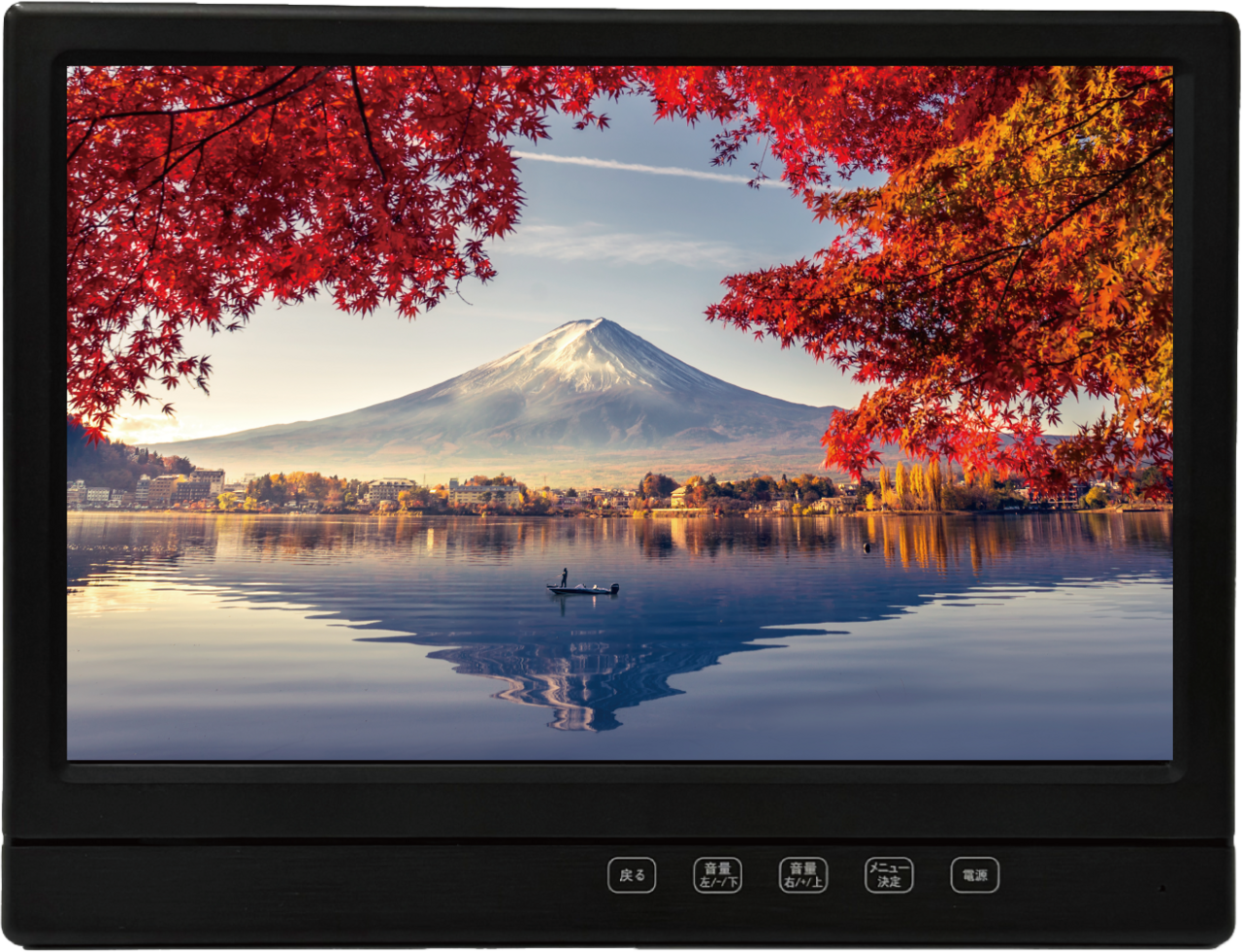

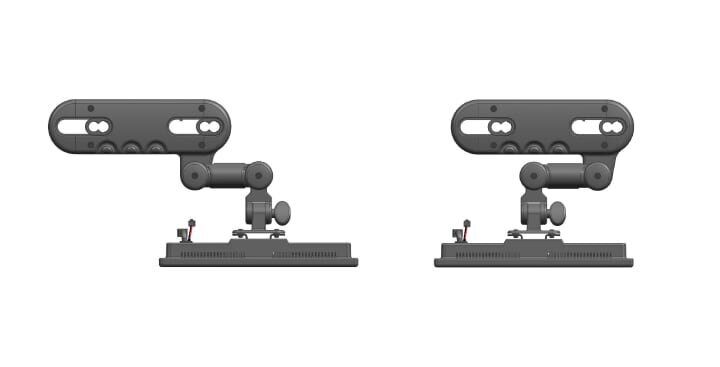

The 10.1-inch rear monitor "AN-M031" comes with a telescopic arm, allowing you to position the monitor freely.

Source: KEIYO.

It supports a resolution of 1280×800P. Not only can it be connected to the "AN-S142" via HDMI, but you can also connect it to a Fire TV or DVD/BD player to enjoy different visuals from the front seats. With this, long-distance drives won't be boring.

The two car items were originally sold as a set, but sales of individual items have now begun. This has expanded the options, allowing you to create your own enjoyment.

Product Name: AN-S142
Price: 59,800 yen
Accessories: Power cord (2.4m), GVIF cable (2.5m), cushion tape x2, hook-and-loop fastener, instruction manual (with warranty)
Compatibility: Manufacturer option display audio-equipped vehicles: Alphard/Vellfire (model years: December 2019 to June 2023, models: AYH30W, AGH30W, AGH35W, GGH30W, GGH35W); Dealer option navigation-equipped vehicles: NSZN-Z68T: models 2018-2019, vehicles: Alphard/Vellfire, Noah/Voxy/Esquire, Estima; NSZT-Y68T: models 2018-2019, vehicles: Aqua, Vitz, Camry, Corolla, C-HR, Roomy/Tank, Harrier, Prius, Prius PHV, Prius α, Land Cruiser Prado, Noah/Voxy, Esquire.

Product Name / AN-M031
Price / 29,800 yen
Accessories / Power cord (2.5m), Headrest extension arm bracket, Headrest adapter, HDMI cable (1.5m), Cushion tape x2, Instruction manual (with warranty)
Operating Voltage / DC12V/DC24V
Current Consumption / DC12V about 370mA / DC24V about 200mA
Operating Temperature Range / -20 to 60℃
Size / Approximately 244×35×184mm (main unit only)
Weight / Approximately 700g (main unit only)
Resolution / 1280×800P
Brightness / 320cd/mm
Speaker / Built-in (8Ω2W×2)

● Keiyo Engineering
